| 1342nm INFRARED DPSS LASER POINTERS |
 |
| CLASS I, II, IIIa Pointers |
| Specifications |
 Products Code |
SSL - LP - 1342 - XXXX - D |
| Wavelength [ nm ] |
1342 |
| Output Power [ mW ] |
< 0.4 |
< 1.0 |
< 5.0 |
| Laser Power Safe Class |
I |
II |
IIIa |
| Operating Mode |
CW |
| Transverse Mode |
TEM00 |
| Operating Temperature [ ºC ] |
+10 ~ +40 |
| Operating Humidity [ % ] |
< 90 |
| Storage Temperatures [ ºC ] |
-20 ~ +60 |
| Storage Humidity [ % ] |
< 60 |
| Beam Diameters At The Aperture [ mm ] |
~ 1.3 |
| Beam Divergence [ mrad ] |
< 1.5 |

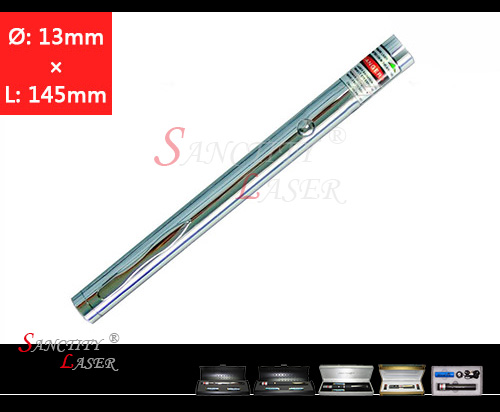

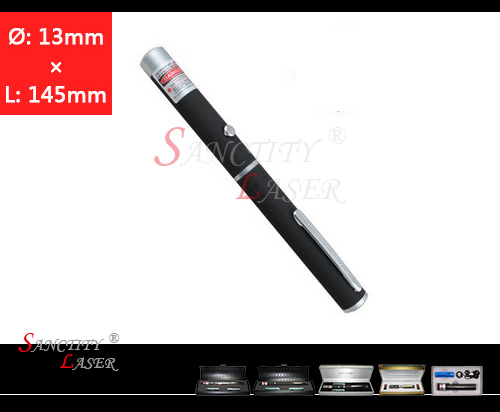

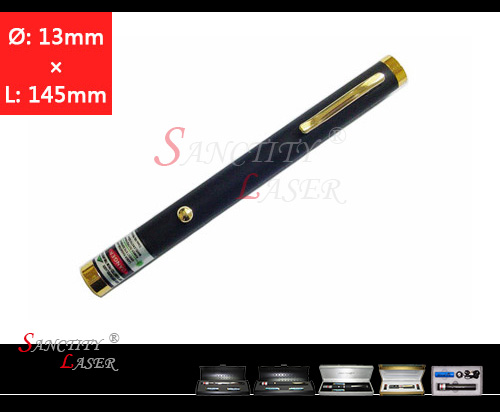

| Pointer Dimensions |
Diameter [ mm ] |
Ø: 13 |
Ø: 13 |
Ø: 13 |
| Length [ mm ] |
L: 145 |
L: 150 |
L: 150 |
| Optional Battery |
AAA x 2 |
| Working Voltage [ VDC ] |
3 |
| Optics |
Glass lens both AR coated |
| Pointer Mount Material |
Copper Alloy |
Copper Alloy |
Copper Alloy |
| Laser Gross Weight [ g ] [ Without Battery ] |
42 |
50 |
55 |
| Electrode Reverse Protection |
YES |
YES |
YES |
| Cooling Way |
Air |
| Expected Lifetime [ hours ] |
> 8000 |
| Warranty Time [ months ] |
6 |
| Lead Time |
Quantity [ pcs ] |
< 100 |
< 500 |
< 1000 |
| Time [ weeks ] |
1 |
2 |
3 |
| |
|
|
| |
Last Update Time: |
2019. 02. 20 |
| |
|
| Note: |
| |
|
| 1. |
Operation Instruction For This Laser Pointer: |
|
|
|
|
|
 |
| |
|
|
| 2. |
Notes For Warranty and Safe: |
|
| |
|
|
| 3. |
Explain for every laser specification please check here: |
 |
| |
|
|
| 4. |
More request for the products please contact to our Customer Service Team: |
 |
| |
|
|
| |
|
|
